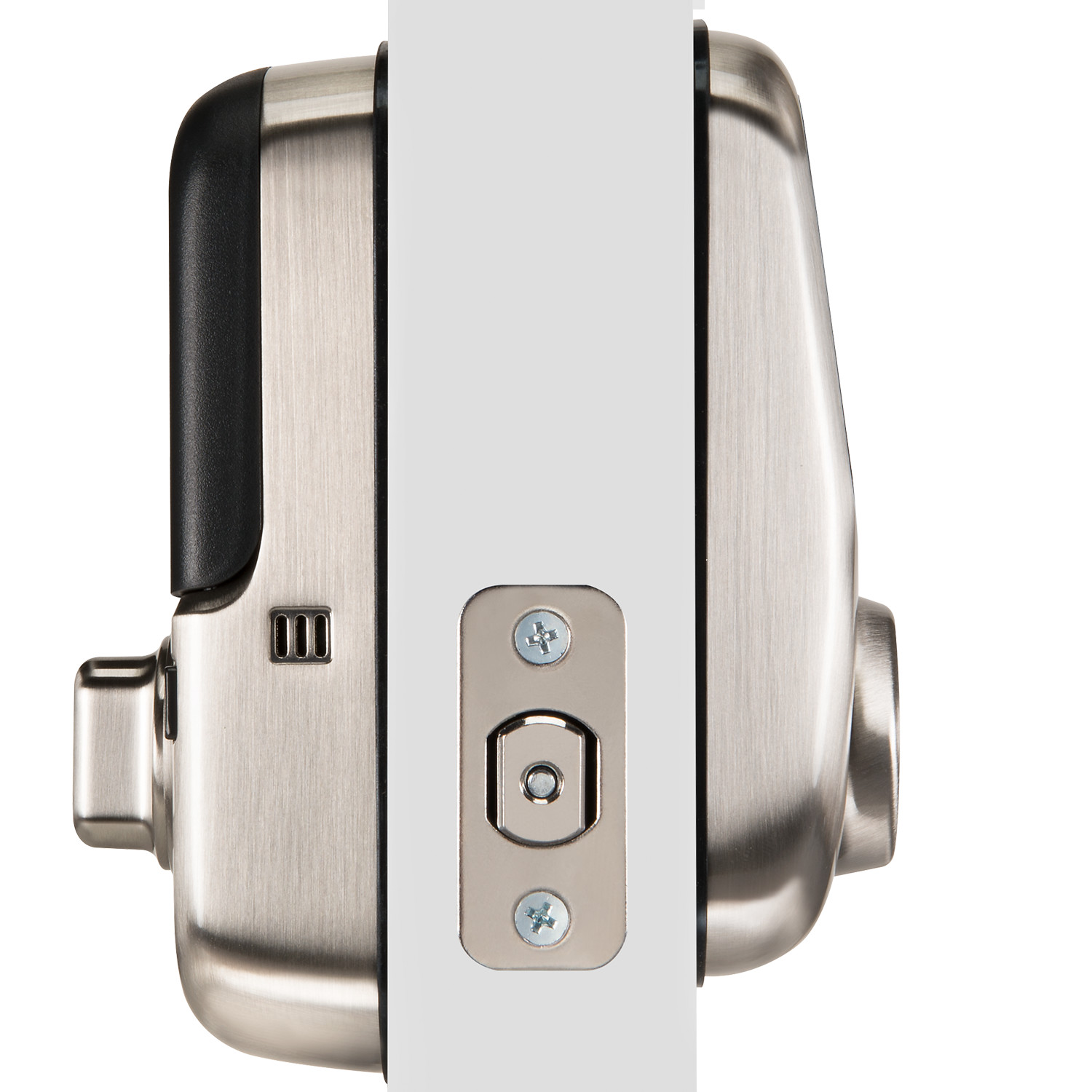

Yale Assure Lock Touchscreen with Z-Wave Plus

Model

Finish

Grade

Grade 2: A156.36 ANSI/BHMA

Keypad Type

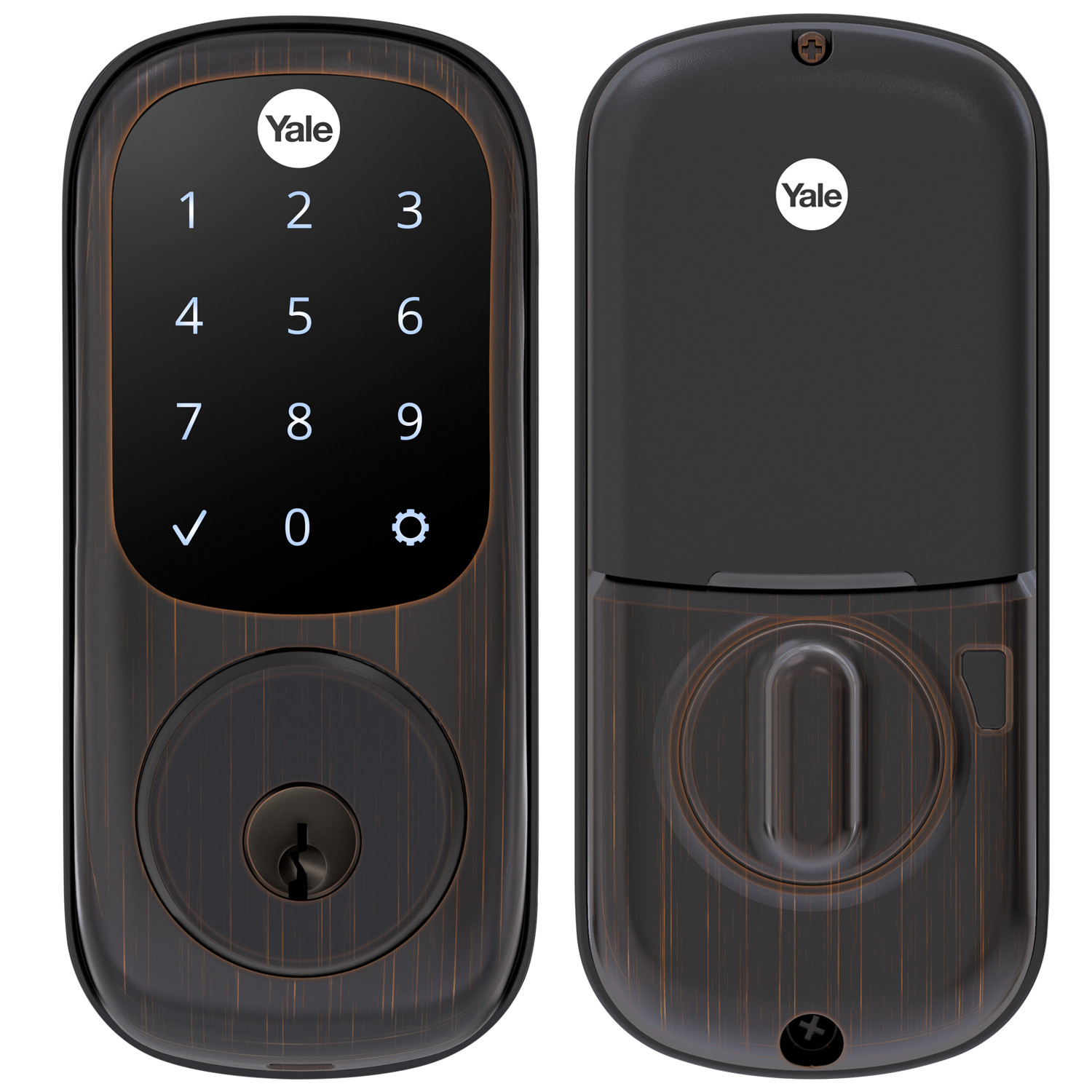

Touchscreen

Batteries Required

Yes (4 Alkaline)

Handing

Self handing (Please hand while in unlocked position)

Latch Front

RC (Round Corner)

Door Thickness

1 3/4" to 2-1/4

Strike

1" x 2 1/4"

Strike Front

RC (Round Corner)

Cylinder

5 Pin Cylinder

Face Bore

2 1/8"

Edge Bore

1"

Backset

2 3/8" or 2 3/4"

Keyway 1

KW-1 5 Pin

Number of Keys

2

Weight (pounds)

Operating Temperature

Outside: -22 F to 140 F Inside: 5 F to 158 F
